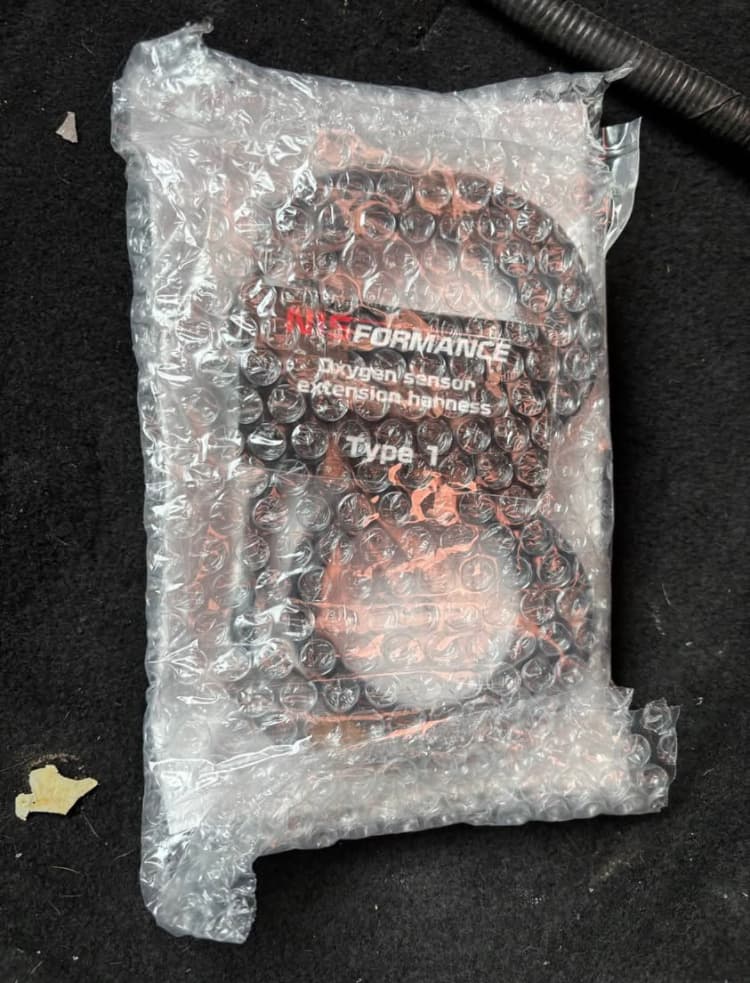

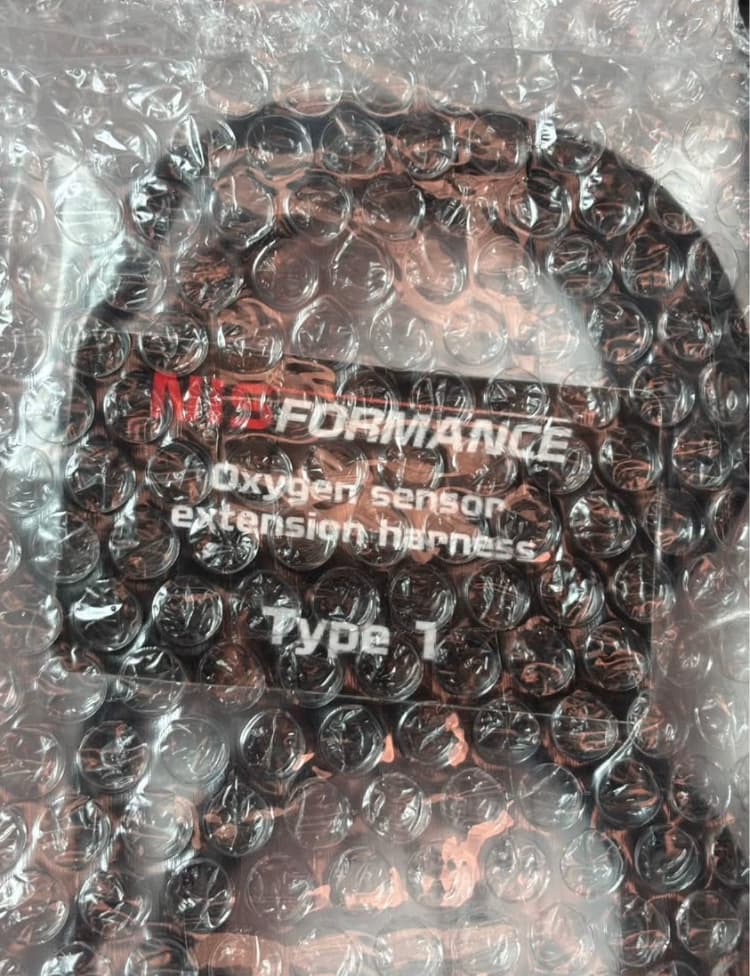

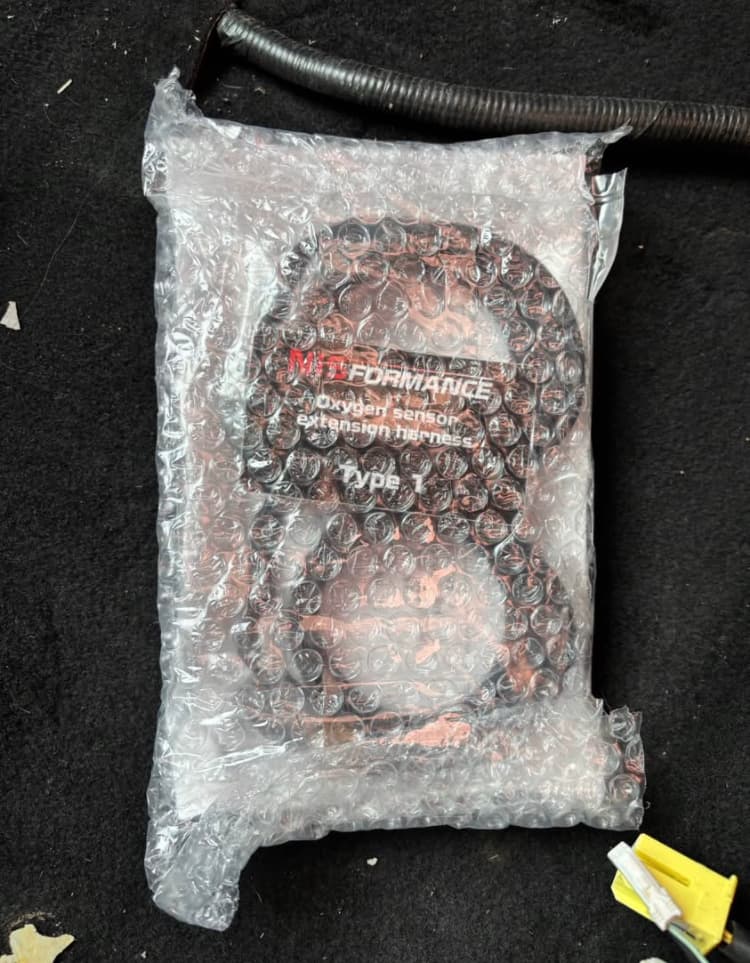

350Z Oxygen Sensor Extension Harness | AFR Sensor Wiring Fix | 2003-2009 VQ35DE/VQ35HR | Upstream O2 Extension | Header Install Kit

If you’ve installed long tube headers, test pipes, high-flow cats, or relocated O2 bungs on your 2003-2009 Nissan 350Z Z33, you know the factory upstream oxygen sensor wiring on the VQ35DE and VQ35HR doesn’t reach the new sensor location and stretching or cutting the OEM harness is the fastest way to get P0133, P0153 slow response codes, damaged wiring, and bad AFR readings, and this 350Z Oxygen Sensor Extension Harness solves that problem with a true plug-and-play AFR sensor wiring fix that adds the exact length needed to reach your relocated upstream O2 sensors without splicing, soldering, or compromising the sensitive heater and signal circuits that the ECU relies on for closed-loop fueling, and each harness uses OEM-grade Sumitomo HX sealed connectors that match the factory male and female plugs on the 350Z engine harness and Denso/NTK wideband AFR sensors so you get a factory click-lock connection with weather seals and proper terminal tension, and the wire itself is automotive TXL 18-gauge with GXL cross-linked polyethylene insulation rated for 125C to handle header heat, oil, and vibration, and all four circuits are included for each sensor, meaning heater power, heater ground, signal, and sensor ground are extended with the same gauge and twist as OEM to prevent voltage drop or EMI that causes lazy O2 response and false lean/rich conditions, and the harness is fully loomed in high-temp fiberglass sleeve with heat-shrink strain reliefs at both connectors so it won’t melt on headers or chafe on the frame rail, and it’s available in 12 inch, 18 inch, and 24 inch lengths to fit every header design from ISR, Z1, Tomei, PPE, and Megan, and because both Bank 1 and Bank 2 upstream sensors usually need extension after header installs, this kit comes as a pair with Driver and Passenger side labeled so you don’t mix up banks, and install is literally 30 seconds per side where you unplug the OEM connector at the valve cover, click this extension in-line, and run it to the new sensor location, and that means no more check engine lights from stretched wiring, no more melted insulation from zip-tying to headers, and no more inaccurate AFR readings that make tuning impossible, and this is critical because the VQ35DE and VQ35HR use wideband AFR sensors upstream and the ECU is extremely sensitive to resistance changes in that circuit, so cheap extensions with thin wire or bad crimps will cause fuel trim issues, poor idle, and failed emissions, and this harness maintains OEM resistance values and signal integrity so your ECU sees the same data it would with a stock-length harness, and it’s a must-have for any 350Z running long tubes, relocated O2 bungs, or aftermarket headers where the sensor bung is moved 6-12 inches downstream, and it also works for VQ-swapped 240SX, G35, and Z33 chassis with similar header clearance problems, and if you’re chasing P2A00, P2A03, P0130, or P0150 codes after exhaust work, 9 times out of 10 it’s because the harness is stretched or damaged, and this fixes it without touching the engine harness, and for tuners and shops this saves hours of diag time and comeback repairs, and the quality is track-proven with hundreds of turbo and NA VQ builds running these extensions through road course heat and drag strip vibration with zero failures, and if you value your engine, your tune, and your sanity, don’t cut your OEM harness and don’t run cheap extensions, because this is the correct way to extend your 350Z upstream AFR sensors after headers. Details & Specs: Application: 2003-2009 Nissan 350Z Z33 VQ35DE & VQ35HR, 2003-2007 Infiniti G35 V35 Function: Extends upstream AFR/O2 sensors for header/test pipe installs Connectors: OEM Sumitomo HX 4-pin male/female, sealed, color-matched to factory Wire: 18AWG TXL/GXL cross-linked, 125C rated, oil and heat resistant Lengths: 12", 18", 24" options, sold as pair for Bank 1 & Bank 2 Loom: Fiberglass high-temp sleeve with dual-wall heat shrink strain relief Compatibility: Denso, NTK, Bosch wideband AFR sensors used on VQ35DE/HR Install: 100% plug-and-play, no cutting, splicing, or repinning required Fixes Codes: P0130, P0133, P0150, P0153, P2A00, P2A03 caused by wiring stretch Use Case: Long tube headers, test pipes, HFCs, turbo kits, relocated O2 bungs
